'hello' animation - Apple's screensaver recreation using GreenSock and SVG

See the Pen hello animation apple's screen saver by trapti (@tripti1410) on CodePen.

In this article, I’m going to show you how to create above 3D text line animation using SVG and GreenSock. I first saw this effect on Apple’s screen saver “Hello” which comes in different languages, so I thought I would create it using GreenSock. When I created it and posted it on Twitter, it got a lot of likes and views and people really liked it. This is one of my favourite. I have also created video of creating the same.

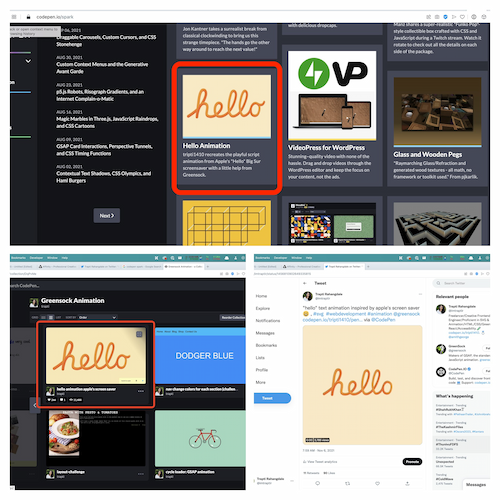

Social media recognition

Let’s create this graphic.

I drew this “Hello” text using an iPad and an Apple Pencil. If you don’t have an iPad or an Apple Pencil, you can use a pen tool to create this. The requirement was to make it look like 3D, so I created it following this tutorial. I then exported this graphic using “Export As” and exported it as an SVG.

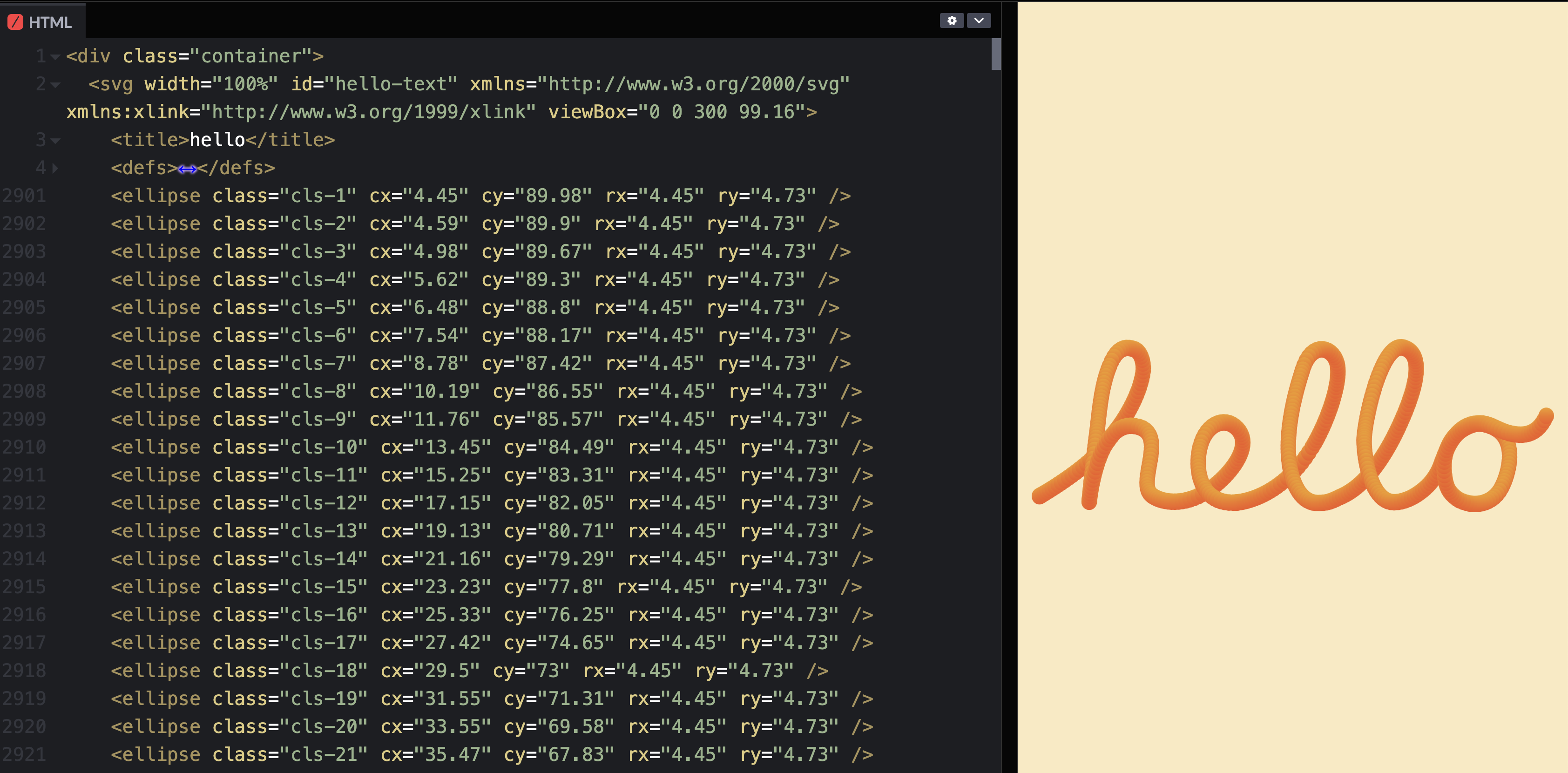

After exporting from the Illustrator, I pasted the SVG into SVGMO and cleaned the SVG. This is how it looks when you put it in the CodePen HTML panel.

SVG hello animation

You can see that everything is an Ellipse since I’ve converted it to a 3D looking text. Everything is an Ellipse, many ellipse elements.

Move on to Animation.

GSAP plugin is included in the CodePen(Settings→ Js).

Created a timeline named tl, and gave a repeat: -1 so that the entire timeline repeats infinitely. I want this text to be hidden initially, so I am setting autoAlpha: 0 for all the ellipses using gsap.set. GSAP uses autoAlpha as a shortcut for opacity and visibility property. So autoAlpha: 0 means visibility: hidden and opacity: 0, hence nothing is visible in the browser.

Let’s make hello text animation. The animation which we want to create look like a line animation. In SVG all we have is ellipses. It will look like line animation if ellipses appear one after the other. The stagger: 0.05 will make the ellipse come one after the other by 0.05 seconds. autoAlpha: 1 will make it visible on the screen. Code will look like this:

let tl = gsap.timeline({ repeat: -1 });

gsap.set('ellipse', {**autoAlpha: 0**})

tl.to("ellipse", { **autoAlpha: 1, stagger: 0.05**,duration: 1, ease: "power4.out" })

Animation looks very slow because of the number of ellipses. We’ll fix that later.

The next thing is to bring the text from behind, scaled down from the center. When the animation finishes, it should be in its original look and position. I’m scaling down the entire SVG using scale: 0.5. To scale it down from the center, add transformOrigin: 50% 50%. I want this to run in the same time period as the above one duration: 50. Position parameter < which will start this tween at the same time as previous tween. You can use 0 also in this case, to start this tween at the starting of the above tween.

gsap.set("#hello-text", { scale: 0.5, transformOrigin: "50% 50%" });
tl.to("ellipse", {
	autoAlpha: 1,
	duration: 1,
	stagger: 0.05,
	ease: "power4.out",
}).to("#hello-text", { scale: 1, duration: 50 }, "<"); // Use "<" or "0" for this case

//The same can be wriiten using from tween and no gsap.set,like below
tl.to("ellipse", {
	autoAlpha: 1,
	duration: 1,
	stagger: 0.05,
	ease: "power4.out",
}).from(
	"#hello-text",
	{ scale: 0, duration: 50, transformOrigin: "50% 50%" },
	"<"
); // Use "<" or "0" for this case

Now the animation looks good, but it is slow. GreenSock comes with a function called timeScale(). We can speed the timeline or slowed it down by passing a number or decimal to the function. Here I am speeding it up by 8 times.

tl.timeScale(8);

Voila! Animation is done, and it looks good.

See the Pen hello animation apple's screen saver by trapti (@tripti1410) on CodePen.

Thanks for reading, if you like my content then consider sharing it on Linkedin and Twitter and do tag me. Stay connected.
